Verify Cluster

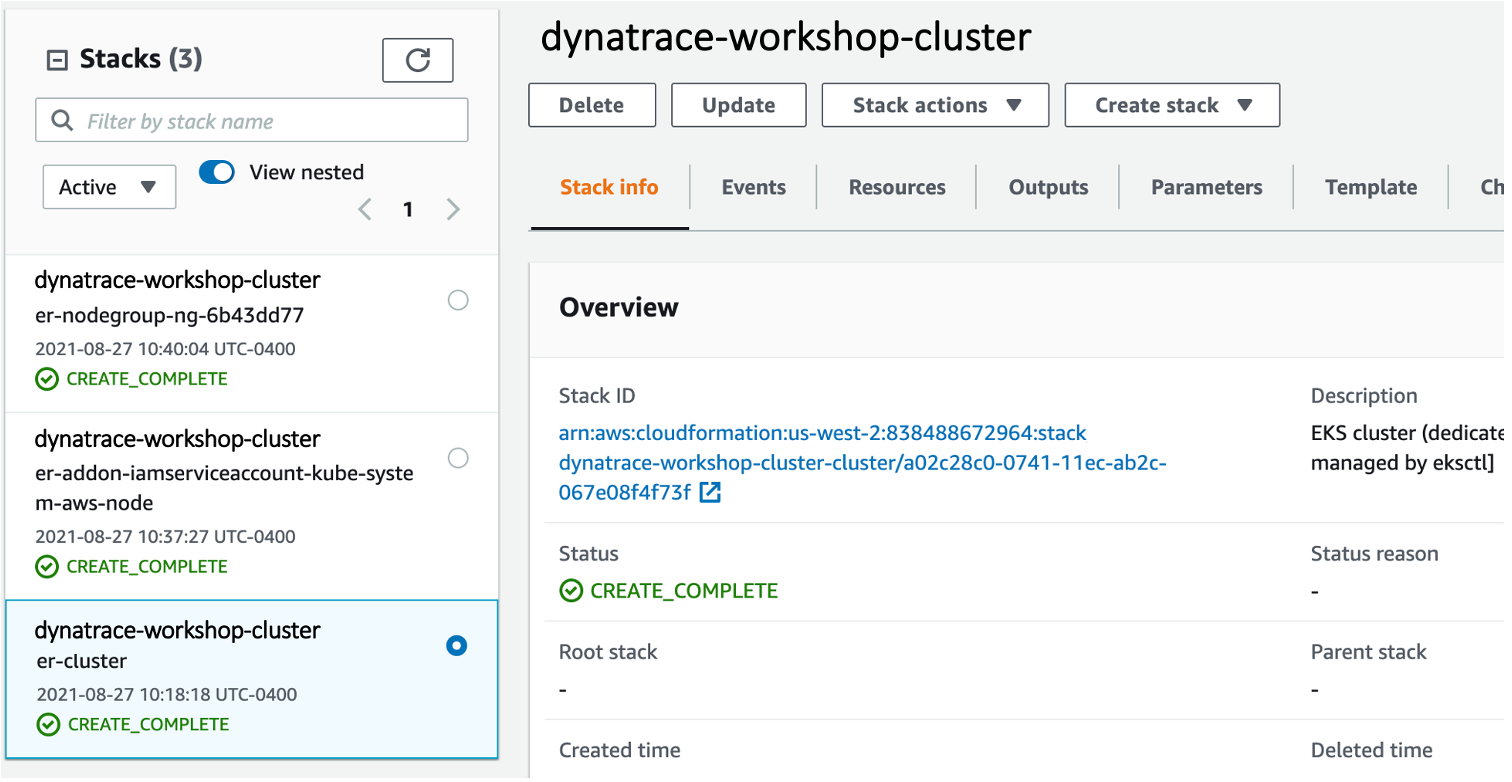

Only proceed with this next step once the CloudFormation stack shows CREATE_COMPLETE status.


1. Verify Cluster using kubectl

Using the CloudShell, you can verify the new cluster with the kubectl command line tool used to control Kubernetes clusters. content/99_cleanup/index.md 1. Run this command to display the command line options

```
kubectl
```

  1. Verify you are connected. You should see dynatrace-workshop as part of the output.

    kubectl config current-context

    The output should look like this:

    [user-info]@dynatrace-workshop.us-west-2.eksctl.io

  2. List the nodes in the cluster

    kubectl get nodes

    The output should look like this:

    NAME                                           STATUS   ROLES    AGE     VERSION
ip-192-168-31-207.us-west-2.compute.internal   Ready    <none>   5d23h   v1.21.2-eks-c1718fb
ip-192-168-86-194.us-west-2.compute.internal   Ready    <none>   5d23h   v1.21.2-eks-c1718fb

    You can see even more detail with this command.

    kubectl describe nodes

2. Verify Cluster within AWS Console

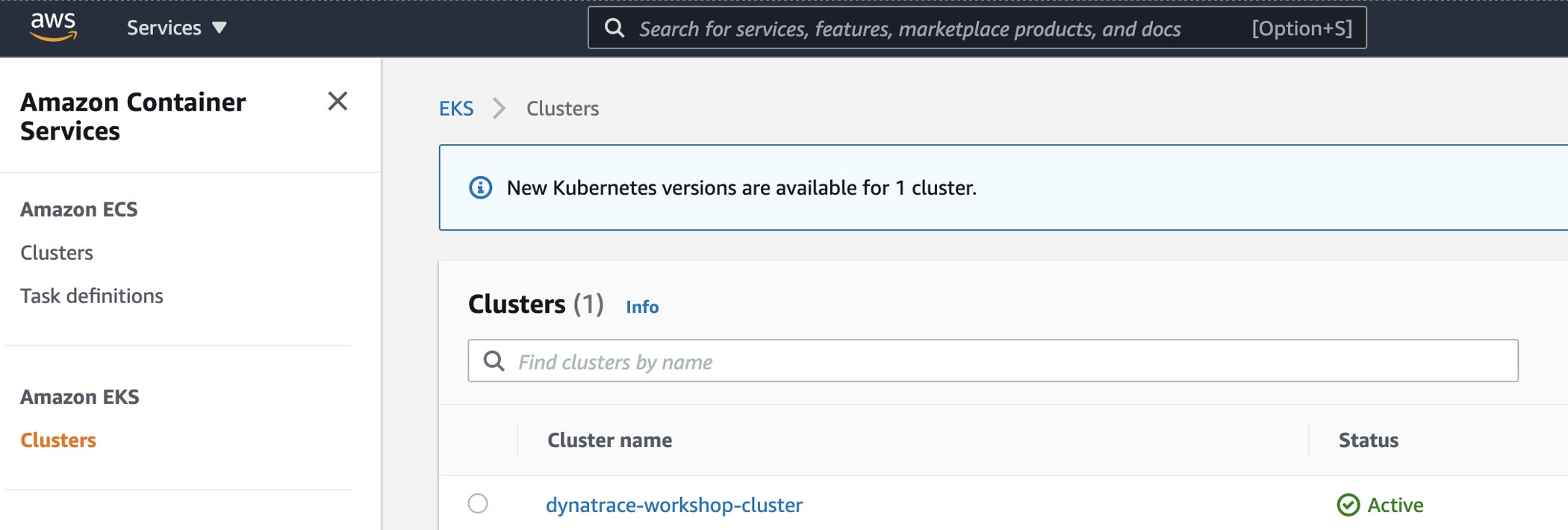

With the AWS Console, search for the Elastic Kubernetes Service or click on the link below.


The cluster page, click on the new workshop cluster. You should see two nodes as shown below.


Explore the configuration and view nodes details.
