Enable a Problem


Various problem patterns that Dynatrace can detect are built into the easyTravel codebase so that we can easily simulate problems without redeploying the application.

Turning on a problem pattern

The easyTravel has REST API that can be used to enable or disable a problem pattern. To make this easier, scripts are provided that will find the IP address for your YOUR_LAST_NAME-workshop-ez-monolith instance and make the required HTTP REST call for the feature flag.

Best to run each problem pattern separately so that it is easier to analyze. It will take about 4-5 minutes for the problem pattern to completely be analyzed.

Problem Pattern #1: CreditCardCheckError500

Causes Error in the Booking Service. Root cause is Communication plugin could not contact credit card verification application via named pipe in the Booking Service.


1 . To enable this problem, run these commands. The script output will just indicate the problem is now enabled.

cd ~/modernize-workshop-setup/aws
./setProblemPattern-CreditCardCheckError500.sh

2 . Navigate to the Problems page from the menu. In about a minute, the problem will appear. Hit browswer refresh as required.


Once the problem appears, checkout:

  • Business impact analysis
  • Impacted services
  • Root cause
  • Visual resolution path


3 . Disable the problem

The problem pattern will be turned on when the script is called. Turn off the problem pattern by just re-running the command and adding false as a parameter. For example:

cd ~/modernize-workshop-setup/aws
./setProblemPattern-CreditCardCheckError500 false

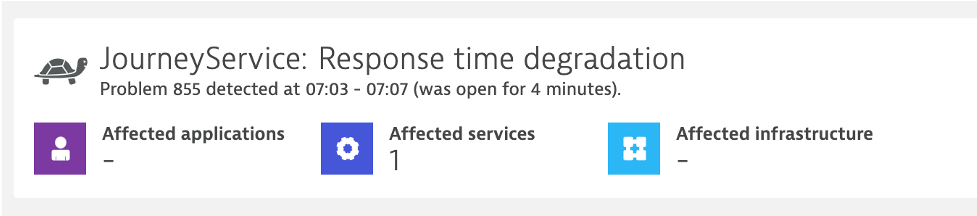

Problem Pattern #2: CPULoadJourneyService

Causes a response time issue impacting multiple services. Root cause is checkDesination Service in Journey Service from a high CPU function call.


1 . To enable this problem, run these commands. The script output will just indicate the problem is now enabled.

cd ~/modernize-workshop-setup/aws
./setProblemPattern-CPULoadJourneyService.sh

2 . Navigate to the Problems page from the menu. In about a minute, the problem will appear. Hit browswer refresh as required.


Once the problem appears, checkout:

  • Business impact analysis
  • Impacted services
  • Root cause
  • Visual resolution path


3 . Disable the problem

The problem pattern will be turned on when the script is called. Turn off the problem pattern by just re-running the command and adding false as a parameter. For example:

cd ~/modernize-workshop-setup/aws
./setProblemPattern-CPULoadJourneyService false

(Optional) Review what problems are enabled

This script will can also be used to review what problems are enabled. Just run this to verify that the CreditCardCheckError500 or CPULoadJourneyService is in the list. There will be other patterns in the list, but you can ignore them.

cd ~/modernize-workshop-setup/aws
./getProblemPatterns.sh

Sample output with CreditCardCheckError500 enabled

--------------------------------------------------------------------------------------
Enabled Patterns on YOUR_LAST_NAME-dynatrace-modernize-workshop-ez-monolith (34.209.63.151)
--------------------------------------------------------------------------------------

CreditCardCheckError500
DatabaseCleanup
DummyNativeApplication.NET
DummyPaymentService
SocketNativeApplication
ThirdPartyAdvertisements
ThirdPartyContent
UseFinanceServiceWCF.NET
